Material Preparation
1. Raw Materials: Production commences with the acquisition of high-quality raw materials, typically including special steel alloys or other advanced materials suited to high precision and durability.
2. Material Inspection: All incoming materials are subject to a rigorous inspection process to ensure they meet the required specifications and standards.
Component Manufacturing
1. Gear Tooth Cutting: The manufacturing process frequently commences with the cutting of the gear teeth. This involves precision machining processes such as gear hobbing or shaping, whereby the gear teeth are cut into the workpieces.

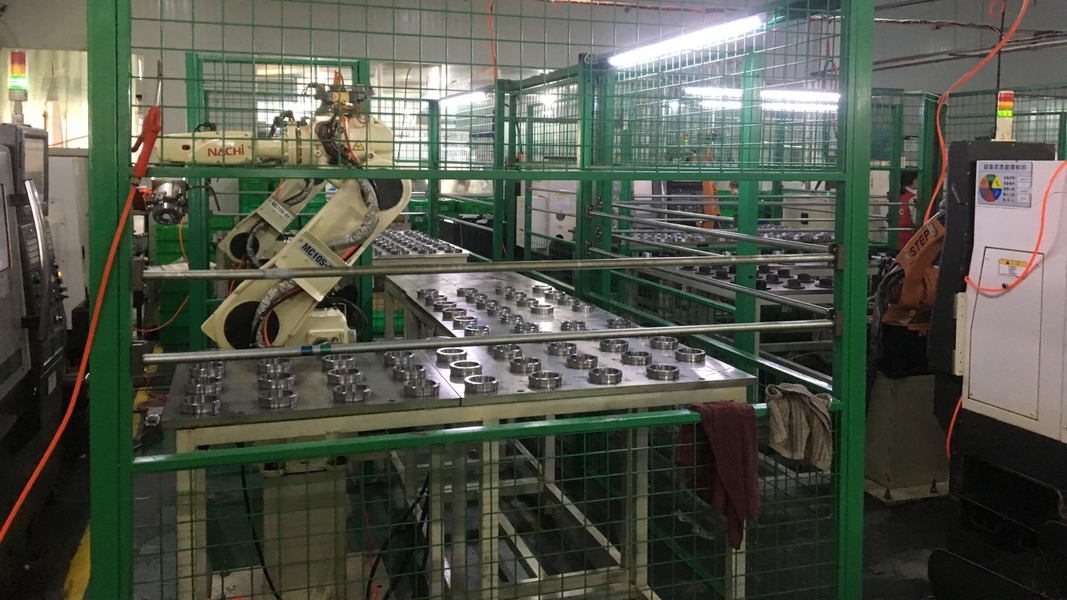

2. Machining: The manufacture of key components such as the wave generator, flexspline and circular spline is carried out to exacting specifications. This stage may involve turning, milling, and grinding operations to achieve the desired geometric tolerances.
3. Heat Treatment: The components are subjected to a heat treatment process in order to enhance their hardness and wear resistance. This process entails heating the material to a specified temperature and then cooling it in a controlled manner.
Precision Assembly
Component Inspection: Once machining and heat treatment have been completed, each component is inspected for dimensional accuracy and surface quality. The components are then assembled into sub-units. In the case of harmonic drives, this typically involves fitting the wave generator, flexspline and circular spline together. The wave generator creates an elliptical motion that causes the flexspline to deform and engage with the circular spline. Precision alignment tools and techniques are employed to guarantee that the components are correctly positioned and that the harmonic drive functions optimally.
Testing and Quality Control
1. Performance Testing: Each harmonic drive reducer is subjected to a series of performance tests to guarantee that it complies with the requisite specifications. This may include load testing, durability testing, and accuracy checks.
2. Quality Assurance: A comprehensive quality control process is in place, which includes inspection of the final assembly for defects and verification that it meets all design and performance criteria.
Finishing
Cleaning: The assembled reducers are cleaned in order to remove any debris or residues from the manufacturing process. Appropriate lubrication is applied to ensure optimal operation and longevity of the gear reducers. The finished products are packaged with the utmost care to prevent damage during transportation and storage. Packaging may include protective materials and labelling for easy identification purposes.
Distribution
1. Inventory Management: Once manufactured, finished harmonic drive reducers are stored in a warehouse where they are managed and tracked for future orders. The products are prepared for shipment to customers, which involves coordinating logistics and ensuring that the products reach their destination in optimal condition.
2. Shipping: The products are prepared for shipment to customers, which involves coordinating logistics and ensuring that the products reach their destination in optimal condition.
Post-Production Support
Customer Service: After the product has been shipped, customer service may be involved to provide support, handle inquiries, and manage any issues related to the product.
b. Continuous Improvement: Feedback from customers and performance data are used to refine and improve the production processes and product designs.
